800W - 1000W 12V-24V-48V hybrid charge controller ISTABREEZE

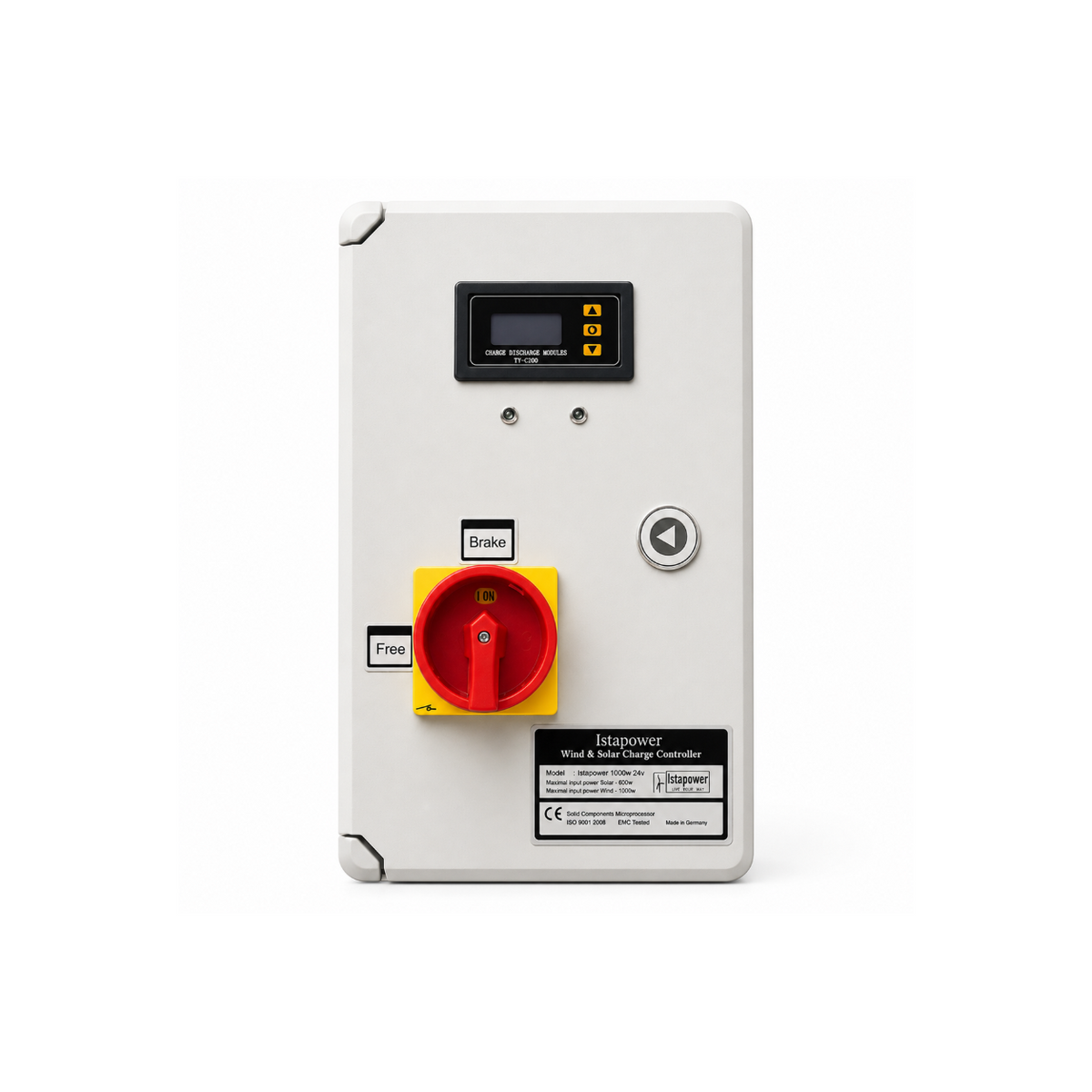

IstaBreeze wind/solar hybrid charge controller
Description:
The IstaBreeze Wind/Solar Hybrid Charge Controller is an intelligent control unit for your wind turbine and solar panels. This high-end device ensures that your battery is charged safely and efficiently by optimally managing the combination of wind generators and solar panels. On request, our technician can adjust the controller for lithium batteries.
Product features:
-
High efficiency: Thanks to its simple operation and integrated protection functions, this device offers high performance and low idle losses.
-
Durability: The use of power relays significantly increases the lifespan of the controller.
-
Microprocessor-controlled charging: Integrated voltage and current limits ensure a reliable and safe charging process.
-
Adjustable for lithium batteries: Our technician will adjust the settings upon request.
-
Electromagnetic brake control: When the battery is fully charged, the generator is automatically and gently braked to minimize mechanical stress.
-
Comprehensive protection: Includes protection mechanisms against overcharging, deep discharging, short circuits, overload and reverse polarity.
Advantages:
- Optimal control: The controller maximizes the lifespan and stability of the entire system, especially the batteries.
- Easy integration: Ideal for use in renewable energy systems that utilize both wind and solar energy.
Use the IstaBreeze Wind/Solar Hybrid Charge Controller to optimize your sustainable energy production and increase the efficiency of your energy solutions!
| Technical Specifications | 12V Battery | 24V Battery | 48V Battery |
|---|---|---|---|
| Minimum voltage for controller start | 6,0 V | 12,5 V | 24,5 V |
| voltage for starting charging the battery | 14,8 V | 28,5 V | 58,5 V |
| voltage for end of battery charge | 17,5 V | 17,5 V | - |
| minimum voltage for battery detection | 6,0 V | Not specified | Not specified |
| Maximum input voltage | 60,0 V | 60,0 V | 80,0 V |
| Recommended wiring for battery storage | 6 mm² | 6 mm² | 4 mm² |
| Maximum distance to battery storage | 3 m | 3 m | 3 m |
| Maximum charging current | 40 A | 40 A | 35 A |
| Maximum speed of the turbine | 2500 U / min | 1500 U / min | 1200 U / min |
| Maximum power of the wind turbine | 800 W | 1000 W | 2000 W |
| Maximum power of the solar input | 600 W | 600 W | 600 W |
| Recommended minimum battery | 12V / 100 Ah | 24V / 100 Ah | Not specified |
| Internal Backup | 50 A | 4 x 12V / 100 A | 50 A / 40 A |
